The Most Advanced

Active Isolation System

for Electron Microscopes

DVIA-M Active Vibration Isolation
DVIA-M Active Vibration Isolation
DVIA-M Active Vibration Isolation
DVIA-M Active Vibration Isolation

Designed for High-Performance Electron Microscopes

DVIA-MB is the ultimate base active vibration isolation platform for all commercial electron microscopes such as SEM and TEM. DVIA-MB provides the optimal environment, enabling electron microscopes to obtain high-resolution images of biological and non-biological specimens by reducing vibrations in the critical range of

1 - 5 Hz where the electron microscopes are extremely susceptible to the low frequency vibration.

Superior Active Vibration Isolator

DVIA-MB consists of four units of active vibration isolators in which the elements of air springs and active isolation technology are embedded. The integrated sensors and actuators effectively reduce the low frequency vibrations and starts to isolate vibrations from 0.5 Hz, achieving 90% vibration isolation at 2 Hz. The elements of air springs support payloads from 500 kg to 6000 kg and effectively reduces high frequency vibrations and, moreover, they lowers its natural frequency.

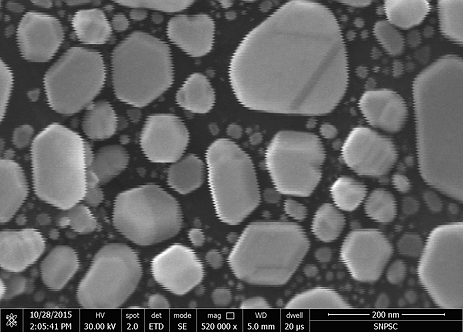

Nanoscale imaging with high resolutions









As per the images clearly above demonstrate, when low frequency vibrations disturb electron microscopes, it is critical to reduce these vibrations with DVIA-MB in order to obtain nano-scale resolution images.

Overcomes Limits of Passive Isolation Systems

The natural frequency of DVIA series is below 0.5 Hz, meaning that DVIA series effectively reduces low frequency vibrations in 1– 5 Hz, where passive isolation systems rather amplify the low frequency vibrations due to its higher natural frequency.

The Most Advanced Active Vibration Isolation System in the World

The resonant frequency of the active isolation systems is much lower than the passive isolation systems.

As the graphs above evidently shows, the active systems excels in controlling vibrations in 1 - 5 Hz range,

where the passive systems amplify the low frequency vibrations rather than filtering them.

The DVIA-M series is highly effective in isolating ultra-precision instruments from the low frequency vibrations where the precision instruments tend to be unstable and disruptive. Active vibration isolation starting at 0.5 Hz, the DVIA-M series achieves in delivering 90% vibration reduction at 2 Hz and  99% vibration reduction at 10 Hz.

Feed-back & Feed-forward algorithms

DVIA-MB uses the feedback control system to continuously detect vibrations disturbing an isolated payload base and instantaneously react to minimize the vibrations in real-time. The feed-forward system is employed in DVIA-MB to filter out floor vibrations in a predefined way.

Controlling vibrations in all six degrees of freedom

Inertial sensors and electromagnetic actuators that are installed in the active vibration isolation systems detect and control vibrations in three translational degrees of motions ( X,Y and Z), and three rotational degrees of motions ( pitch,roll and yaw).

On-site tuning for better performance

Vibration levels vary with environment, location, vibration sources etc. Therefore, we offer on-site tuning performed by our experienced engineers to guarantee the maximum performance level and customers' satisfaction. The engineer conduct a site survey to measure vibration data which is used to tune the feedback and feedforward control systems, maximizing vibration isolation performance.






Installation Photos
